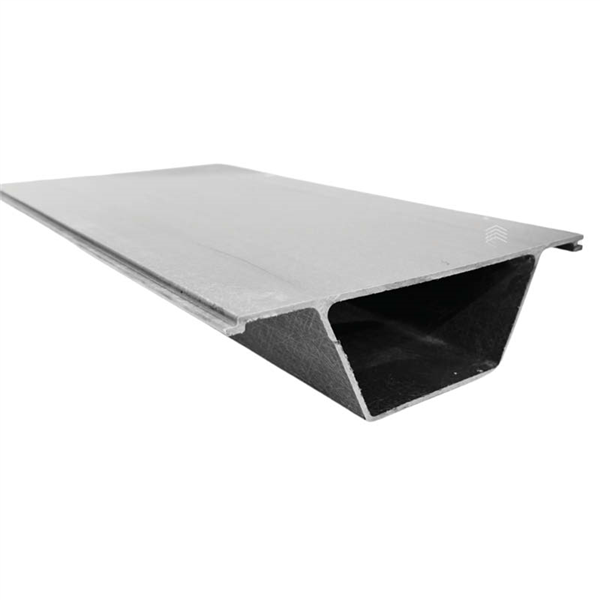

Composite Sleeper for retaining walls SuperSleeper - 205mmH x 2350mmL
Composite Sleeper for retaining walls SuperSleeper - 205mmH x 2350mmL
Couldn't load pickup availability
LIFESPAN
SuperSleeper is the lightest and strongest product on the market, and its durability will allow it to last well over 100 years.
Super Sleepers don't absorb water so it will not rot like timber, allowing it to withstand the harsh Australian conditions. Unlike concrete and steel sleepers, a Super Sleeper will not crack or rust over time. Protected by a UV coat, the sleepers are able to provide a longer lasting product with higher resistance to degradation.
Being made of composite materials allows this product to be fire resistant allowing our customers to have safe and sound knowledge that Super Sleeper can perform in the toughest conditions.
Use the 205mm x 2350mm sleeper for wall between 0 metres and 0.6 metres high
See the helpful online calculator here to see what you might need.
https://supersleepers.com.au/calculator/
Product Guide
Install Guide
To where it all began - with innovative design, superior durability, and a commitment to transforming retaining walls.
The versatile SuperSleepers can be painted to match the unique aesthetics of your property, making your retaining walls a seamless part of your landscape design.
ABOUT
SUPERSLEEPER
Designed by registered and international certified Chartered Engineers, the composite sleepers are in high demand for their modern and seamless aesthetic to instantly enhance any garden structure.
Easy to Install
DIY retaining wall is quick and easy to construct.
Reduced Carbon Imprint
For a multitude of factors, SuperSleeper is environmentally friendly. It produces less C02 in the manufacturing process, and the light weight material translates to less carbon impact involved in the transportation process.
Durability
More durable than any other sleeper on the market. Made from composite materials which are 4x stronger than concrete, yet 4x lighter than steel. Super Sleeper will outperform any other solution.
DESIGN SPECIFICATION
Material Composition
65% E- Glass
30% POLYSTER
5% CALCIUM CARBONATE
How composite stacks up?
SuperSleeper is your next landscaping structure solution that prioritises functionality and eco-friendly manufacturing.
Composite materials are guaranteed to go the distance with a high resistance to deterioration and an expected lifespan of 100 years if maintained and constructed correctly. Durability and robustness of the product is paramount.
This product is a combination of structural functionality, efficiency and seamless design.
| Single Tier Retaining Wall - Soil Type 1.1 - 5kPa (includes allowance for 1800mm high fence with wind region B with full shielding) | |||||||
|---|---|---|---|---|---|---|---|
| Wall Height "H" | Footing Depth 'D' | Footing Spacing 'S' | Intermediate Post | Pile Dia. 'PD' | End Post | Post Embedment | |
| 400 | 600 | 2400 | 120 UB SuperPost | 300 | 100 PFC SuperPost | 'D' - 200 | |
| 600 | 800 | 2400 | 120 UB SuperPost | 450 | 100 PFC SuperPost | 'D' - 200 | |
| 800 | 1000 | 2000 | 120 UB SuperPost | 450 | 100 PFC SuperPost | 'D' - 200 | |
| 1000 | 1200 | 2000 | 120 UB SuperPost | 450 | 100 PFC SuperPost | 'D' - 200 | |
SUPERIOR CHOICE
- SuperSleeper is a durable, sustainable and cost-effective solution for retaining walls.
- It is protected by a UV coat and fire resistant properties, making it able to withstand the harshest Australian Conditions.
- SuperSleeper is designed for a 100 year life on the engineering in accordance with Australian Standards.
REVOLUTIONARY DESIGN
- SuperSleeper was designed to exceed Australian standards by registered and international certified Chartered Engineers.
- Testing has been undertaken by a third-party NATA accredited laboratory and QUT.
- Designed with the latest innovative software and tested to ensure deflection is within limits to enhance the aesthetics of the retaining wall.
- Each sleeper weighs less than 6kg, making for quick and easy installation, saving time and money.
| Site Properties - Geotechnical Report - Material - Material to be confirmed by professional engineer | |
|---|---|
| Unit Weight | 19kN/m |
| Friction Angle | 26 Degrees |
| Drained Cohesion, C' | 5 kPa |
| Insitu Backfill | - |
| Surcharge (Transient) | 5 kPa |
Note:
- All sleepers on the table above are by SuperSleeper Composite Sleepers
- The tables are presented as a guide for a specific soil conditions. It is important to recognise that foundation depth can change based on soil conditions encountered on site.

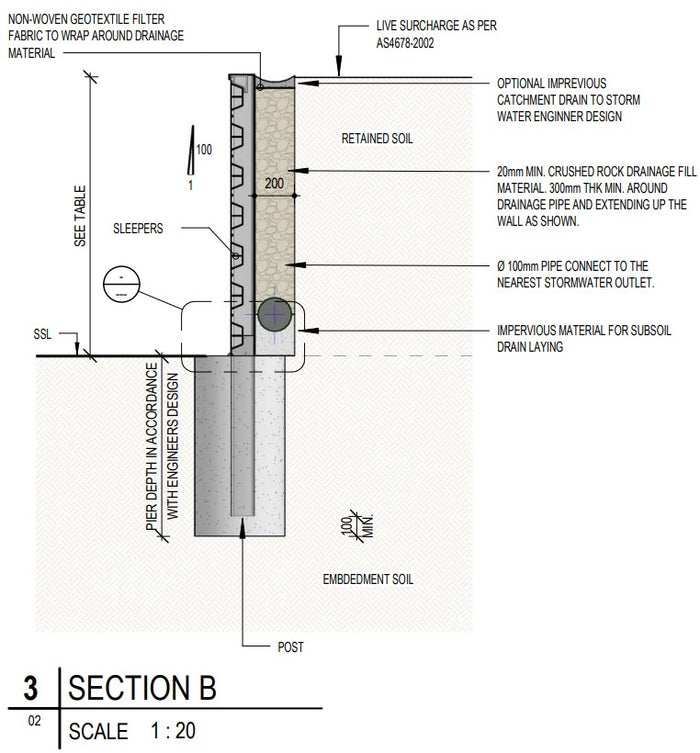

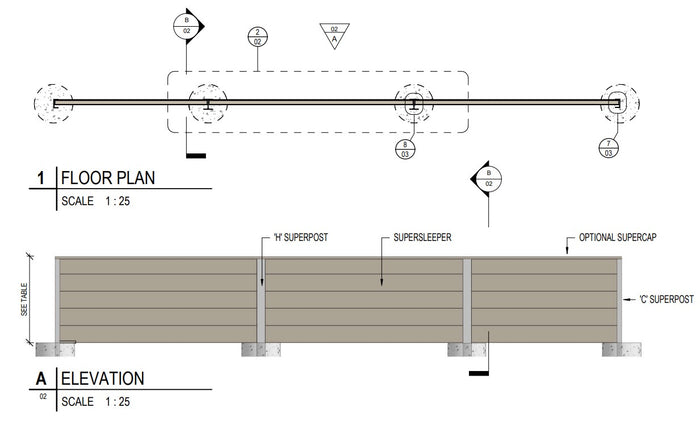

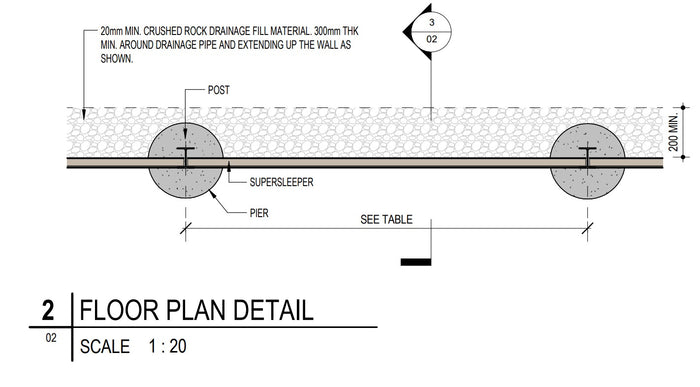

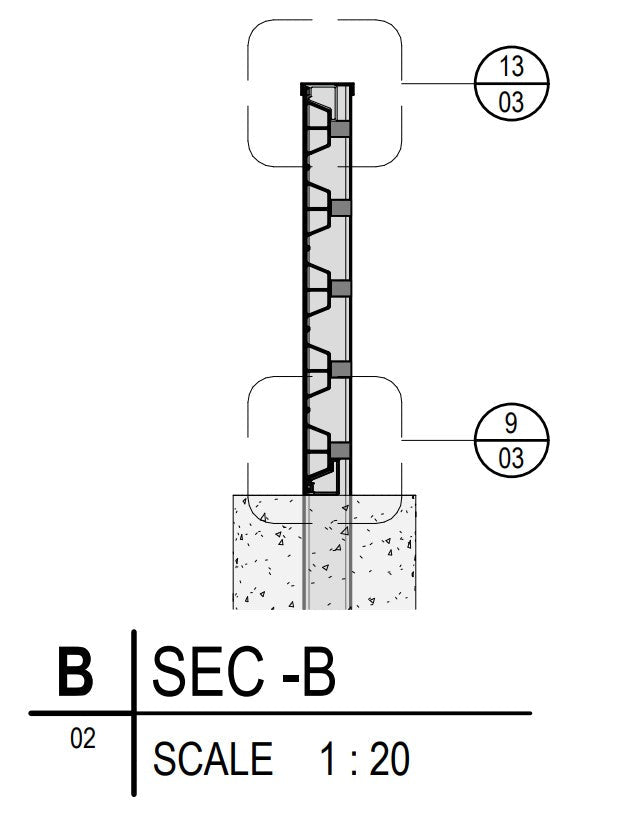

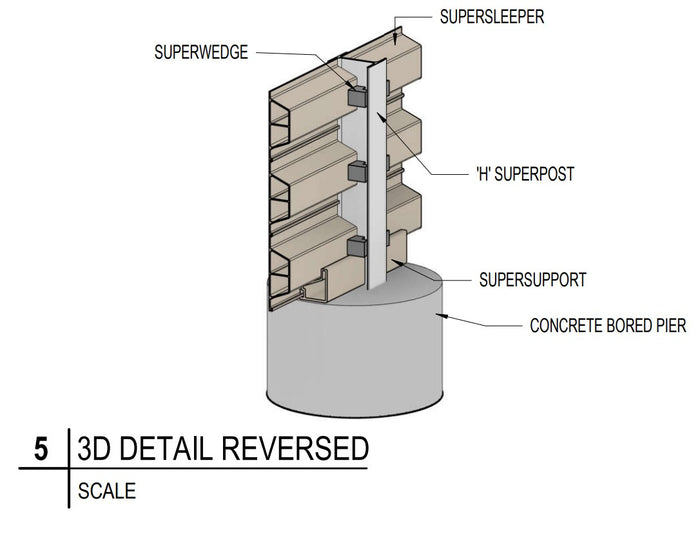

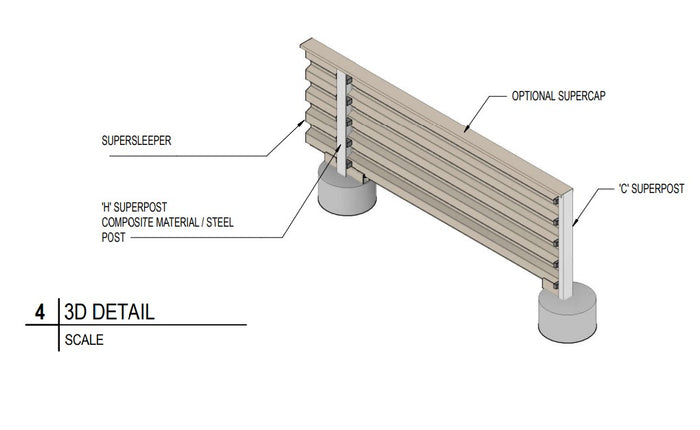

- Refer to SuperSleeper install drawings for details
